Simulation Control
Generate marine navigation and sensor data with configurable PGN output and transport settings.
Simulate. Replay. Verify.
NMEA 2000 on iPhone and iPad.
N2K Simulator is a practical tool for marine electronics testing and demo setups. Send synthetic NMEA 2000 streams, replay recorded sessions, monitor live signals, and validate instrument behavior before heading offshore.

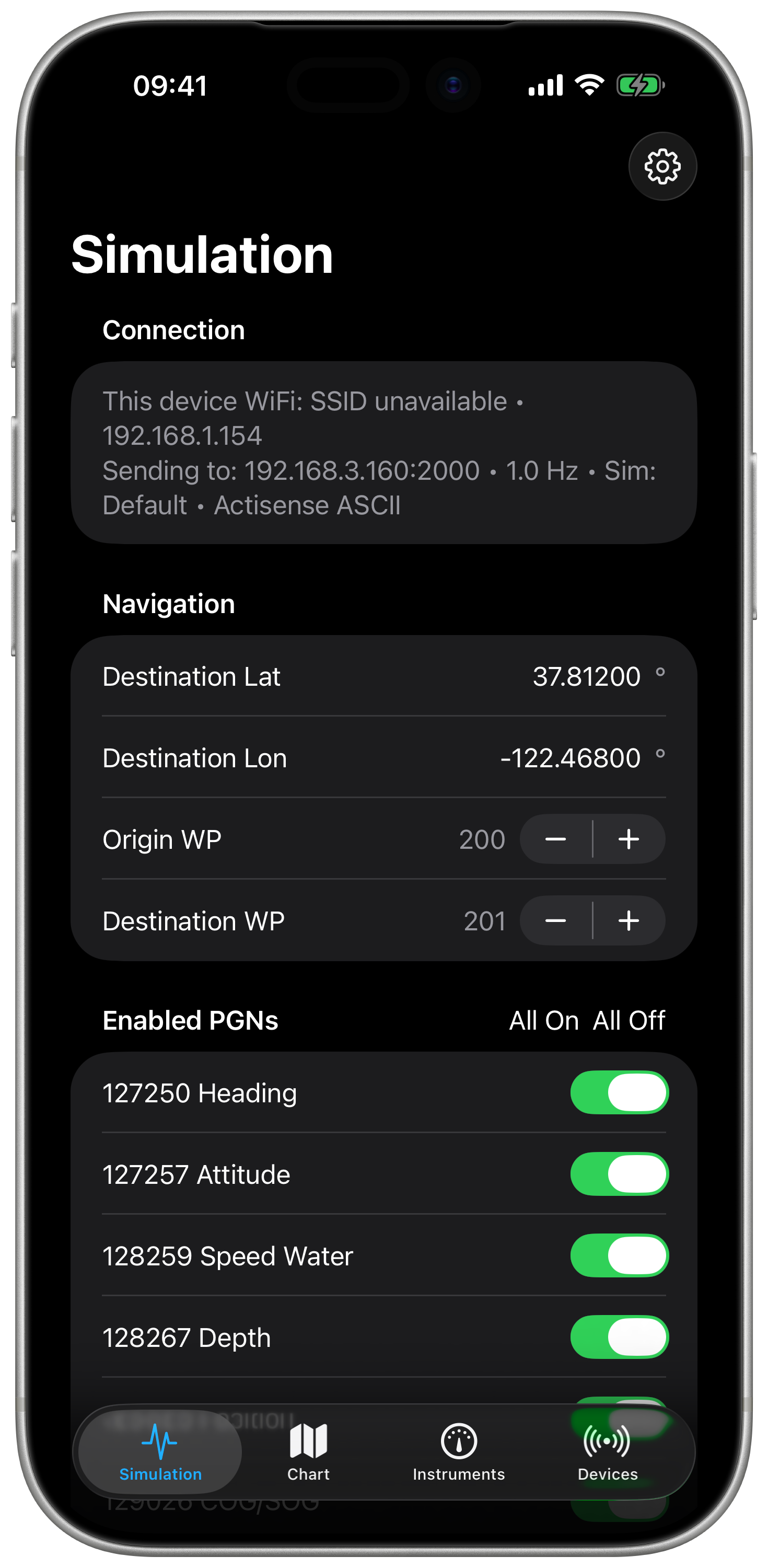

Simulation
Chart + Track View
Instrument Dashboard
File Replay (VKX / VTK / VCC / GPX)
N2K Device Discovery
File Conversion
What N2K Simulator Does
Simulate and stream key marine PGNs over UDP (Actisense ASCII or YDWG RAW), or replay real voyages from .vkx, .vtk, .vcc, and .gpx files.
Replay & Export
Load and replay recorded sessions, compare behavior, and export replay data in supported formats.

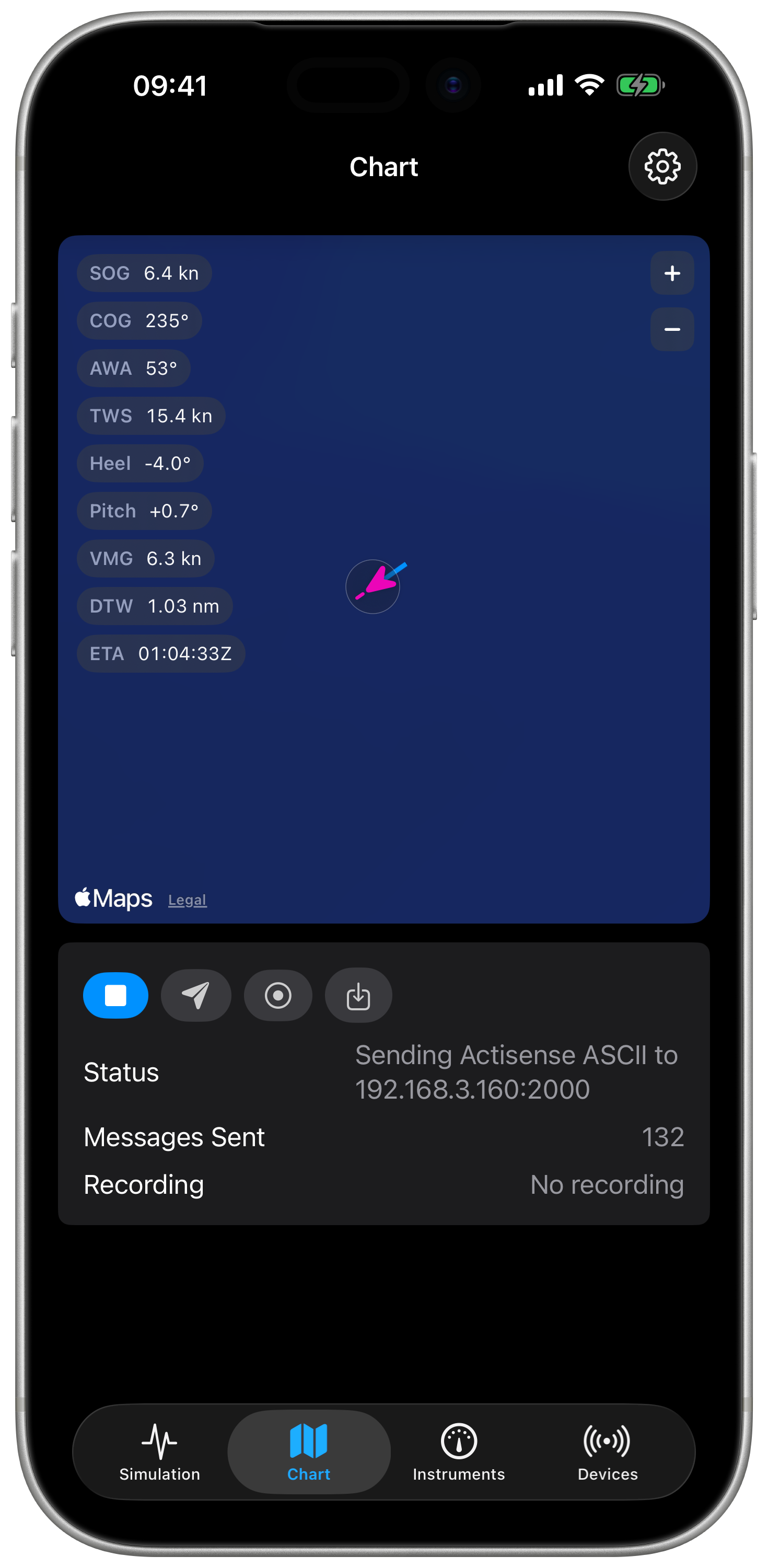

Chart + Motion View
Visualize vessel movement, route progression, and key live metrics directly on map overlays.

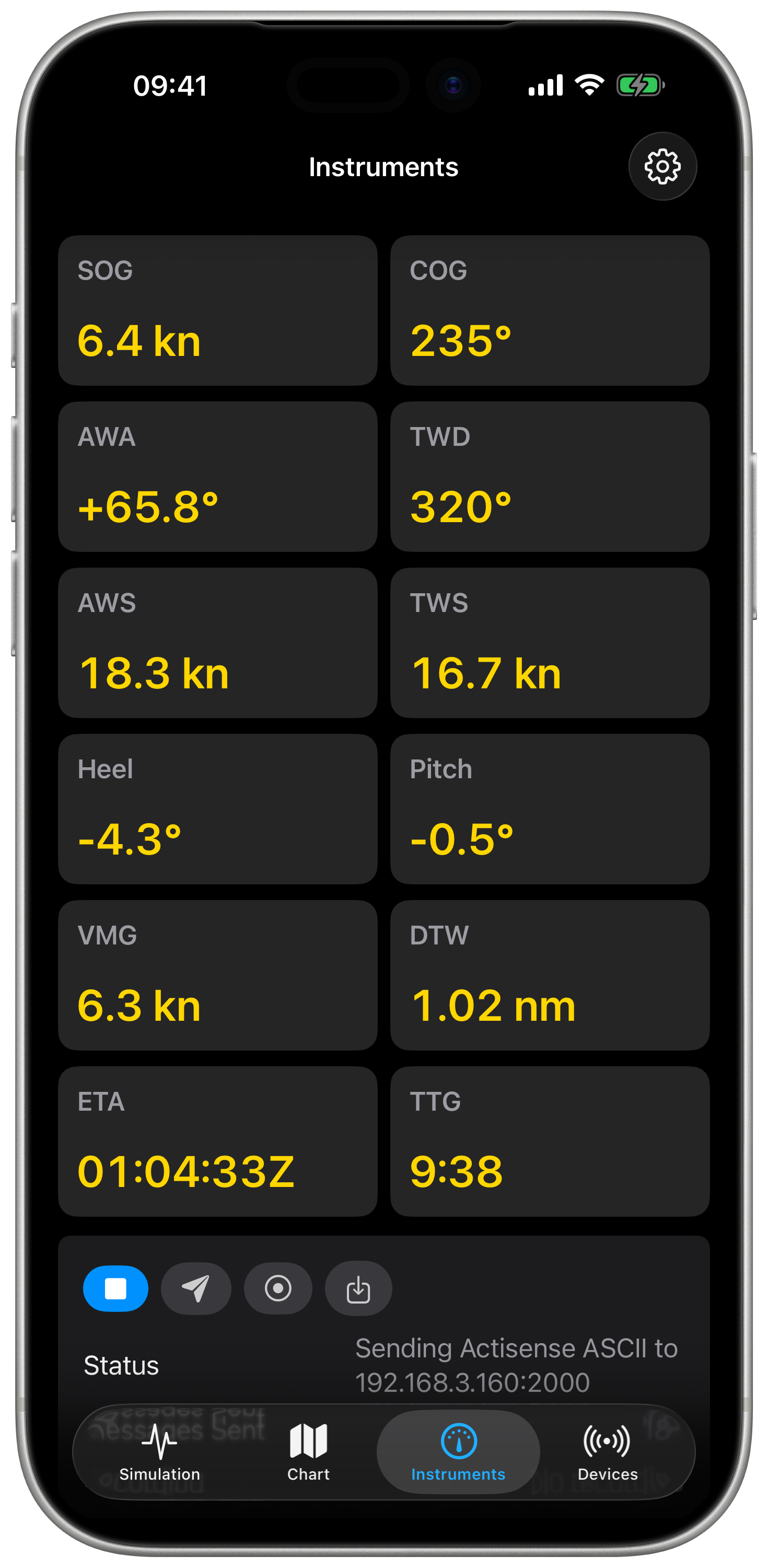

Instrument Panels
Review SOG, COG, AWA, TWS, VMG, DTW, ETA, TTG and additional metrics in a configurable dashboard.

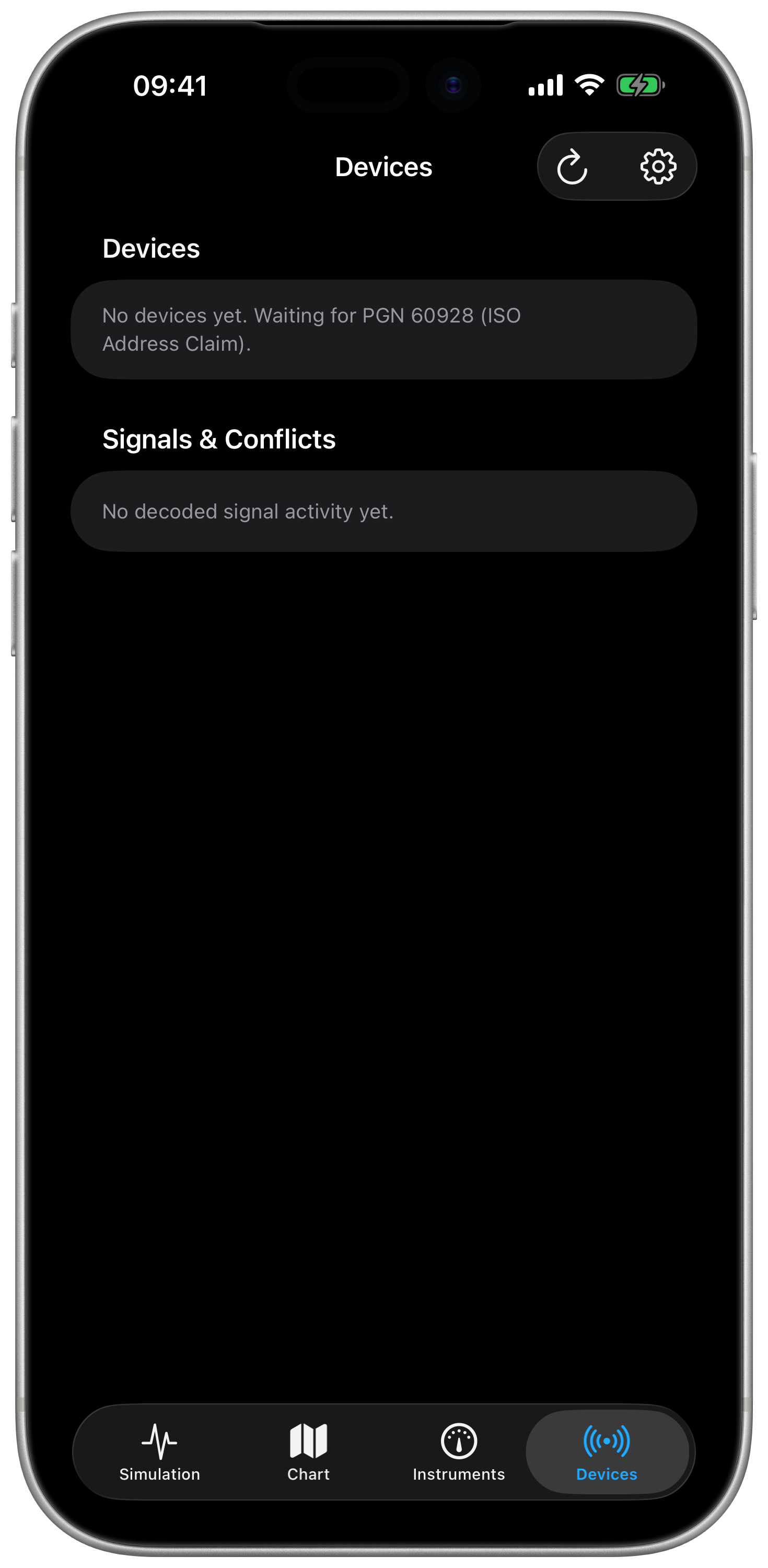

Device View
Inspect detected NMEA 2000 devices, monitor network behavior, and trigger network rescans.
Testing Workflow
Useful for demo rigs, integration checks, and regression verification of marine software/hardware pipelines.
File Conversion
Load a log file in one of the supported formats and export it to another format (VKX / VTK / VCC / GPX).
Screenshots
N2K Simulator turns your iPhone/iPad into a practical NMEA 2000 data lab for development, bench testing, and troubleshooting.
- Simulate and stream key marine PGNs over UDP (Actisense ASCII or YDWG RAW), or replay real voyages from .vkx, .vtk, .vcc, and .gpx files.
- Visualize movement on a live chart with track history, monitor instrument data in customizable tiles, and control replay with scrub, speed (1x-8x), skip-to-motion, pause, and rewind tools.
- You can also record incoming network traffic, save/export sessions (.vkx, .vtk, .gpx), and inspect live logs for deeper diagnostics.
- The Devices view helps you understand what is happening on the bus: discover devices via address claims, decode product information, label/mute sources, and detect signal conflicts (duplicate or mismatched data across sources).
- Use N2K Simulator to validate integrations faster, reproduce edge cases reliably, and troubleshoot marine networks with confidence, whether you’re a developer, installer, or advanced boater.
- The simulator needs to be connected to a WiFi network and an NMEA 2000 wireless gateway must be accepting a data stream with Actisense N2K ASCII format.or YD-WG RAW.
- The app is currently supporting the following PGNs:
- 59904 ISO Request (used to request other PGNs during device scan)
- 60928 ISO Address Claim (device discovery)
- 126992 System Time
- 126996 Product Information
- 127250 Vessel Heading
- 127257 Attitude
- 128259 Speed, Water Referenced
- 128267 Water Depth
- 129025 Position, Rapid Update
- 129026 COG & SOG, Rapid Update
- 129283 Cross Track Error
- 129284 Navigation Data
- 130306 Wind Data
- 130310 Environmental Parameters (used here for water temp)
Privacy Policy
App Store Approved Privacy Policy (No Data Collection)
Effective date: May 23, 2026
N2K Simulator does not collect, transmit, sell, or share personal data. We designed the app to run locally on your device for simulation and replay use.
- No account required
- No analytics SDKs
- No ad tracking
- No third-party data sharing
- No personal information collection
Any configuration values and simulation settings are stored locally on your device as app preferences. Network output is only sent to the destination endpoint you configure in the app.
For App Store privacy nutrition labels, this app is intended to be declared as “Data Not Collected”.
Contact
Questions? Requests? Please stay in touch.
Developer: HYPEIT INC.
Email: ahoy@n2ksystems.com
Website: https://hypeit.net
Trademarks
NMEA 0183 and NMEA 2000 are registered trademarks of National Marine Electronics Association. SeaTalk NG is a registered trademark of Raymarine UK Limited. WiFi is a registered trademark of the Wi-Fi Alliance. All other trademarks are the property of their respective owners.
